- Place of Origin: Hebei
- Brand Name: YUANCHENG
- Model Number: OD

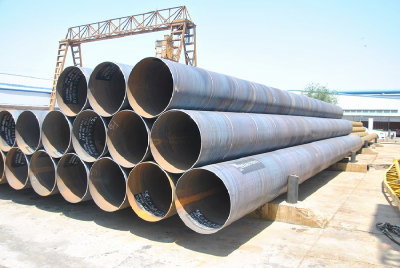

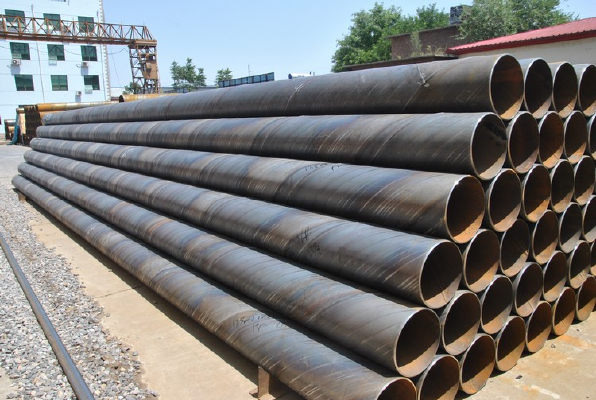

SSAW steel pipes are used for the transmission of water, gas, or petroleum products and many other usages. Our spiral welded steel pipes and tubes are available in wall thicknesses and diameters. We are among the leading manufacturers and suppliers of SSAW pipes and tubes in China, welcomed by customers in many countries of the world.
Spiral steel pipe,ssaw steel pipe,carbon steel pipe,welding steel pipe:
1.We produce pipes ourselves
2.OD:219-2420mm,WT:5-30mm,length of pipe:3-18m
3.certificate: API 5L & ISO,GB/T9711-1997,SY/T5037-2000
Spiral submerged arc welding steel pipe
SSAW steel pipe API5L
API 5L, EN-10208, GB9711.1/2, ISO
A, B, X42, X46, X52, X56, X60, X65, X70
SSAW steel pipe,carbon steel pipe.welding steel pipe,spiral steel pipe
1.Uses:Used for the conveyance of water, gas, or pertroleum products and piling pipe
2.Standard: API 5L, PSL 1/2, EN-10208-1/2, GB9711.1/2, ISO
3.Steel grade: A, B, X42, X46, X52, X56, X60, X65, X70
4.Specification: OD from 219.1mm to 2134mm , means from 8.625inch from 84 inch.
The thicknessof wall is from 5.6mm from 22.2mm.
- Place of Origin: Hebei
- Brand Name: YUANCHENG
- Model Number: OD
Spiral steel pipe,ssaw steel pipe,carbon steel pipe,welding steel pipe:
Product name | Spiral submerged arc welding steel pipe |
Standard | API 5L, GB/T9711, |
Grade | Q235,Q345,B,X42,X52,X60,X65,X70 |
application | As conveyer pipe in the fields of petroleum , heat, and natural gas, construction pipe, ground piling pipe |
Outside diameter | 219-2420mm |
Wall thickness | 5.00-30.00mm |
Length | 6-20m |
Technique | Double sides submerged arc welding steel pipe |
Certificate | ISO9001:2008, API SPEC 5L |
Package details | in bundles, case packing, or bulk pack |
Spiral steel pipe,ssaw steel pipe,carbon steel pipe,welding steel pipe Chemical Composition
API 5L | Steel Grade | C | Mn | P | S | |
Max | Max | Min | Max | Max | ||
API SPEC 5L | PSL1 | |||||
A25/L175 | 0.21 | 0.60 | 0.030 | 0.030 | ||
A25P/L175P | 0.21 | 0.60 | 0.080 | 0.030 | ||
A/L210 | 0.22 | 0.90 | 0.030 | 0.030 | ||
B/L245 | 0.28 | 1.20 | 0.030 | 0.030 | ||
X42/L290 | 0.28 | 1.30 | 0.030 | 0.030 | ||
X46/L320,X52/L360,X56/390 | 0.28 | 1.40 | 0.030 | 0.030 | ||
X60/L415,X65/L450,X70/L485 | 0.28 | 1.40 | 0.030 | 0.030 | ||
PSL2 | ||||||
B/L245 | 0.24 | 1.20 | 0.025 | 0.015 | ||
X42/L290 | 0.24 | 1.30 | 0.025 | 0.015 | ||
X46/L320,X52/L360,X56/L390 | 0.24 | 1.40 | 0.025 | 0.015 | ||
X60/L415,X65/L450,X70/L485 | 0.24 | 1.40 | 0.025 | 0.015 | ||
